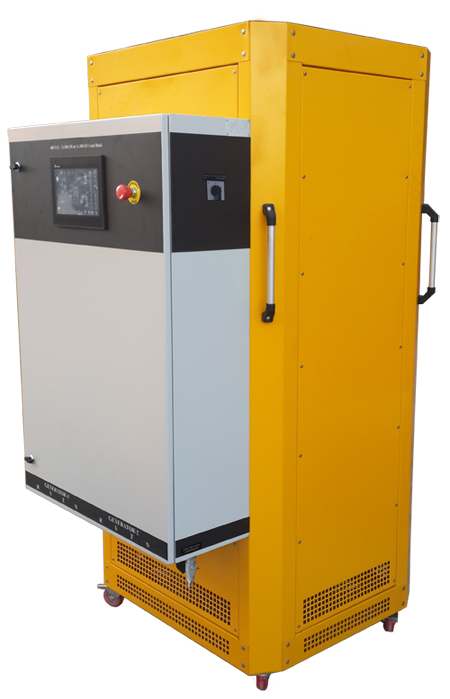

Load banks are used for testing generators, UPS systems, voltage regulators, alternators etc. and for load tests performed in laboratories. Our products are designed and tailored to customers’ needs. In order to provide desired cos φ value, we manufacture not only load banks including resistive loads, but also inductive or capacitive.
Technical specifications
| Operation voltage: | DC or 50/60 Hz AC |
| Power range: | 1–5000 kVA |
| Load steps: | 1, 2, 3, 4, 5, 10, 20, 50, 100 kW/kVAr |
| Cos φ value design: | customized |
Advantages
Excellent cooling enabled by specially designed resistor shape and proper mounting
Resistance material whose resistance value does not change with temperature, allowing continuous testing
Cooling with high quality and long-lasting axial fans
Control panel allowing automatic load control
High-tech equipment, such as airflow sensors providing accurate fan control, temperature sensors for overheat control, phase sequence relay and marginal relay – can all be monitored from the control panel
Displayed on the control panel V1, V2, V3, N, A1, A2, A3, cos φ, Hz, kW, kVAr, kWh values can be read by a computer
Custom-made design (for indoor and outdoor applications, permanent, portable, container, trailer-mounted etc.)
